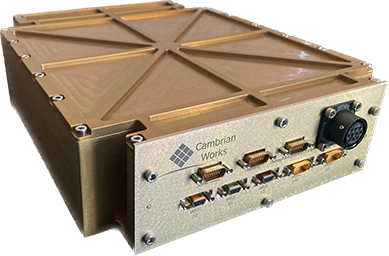

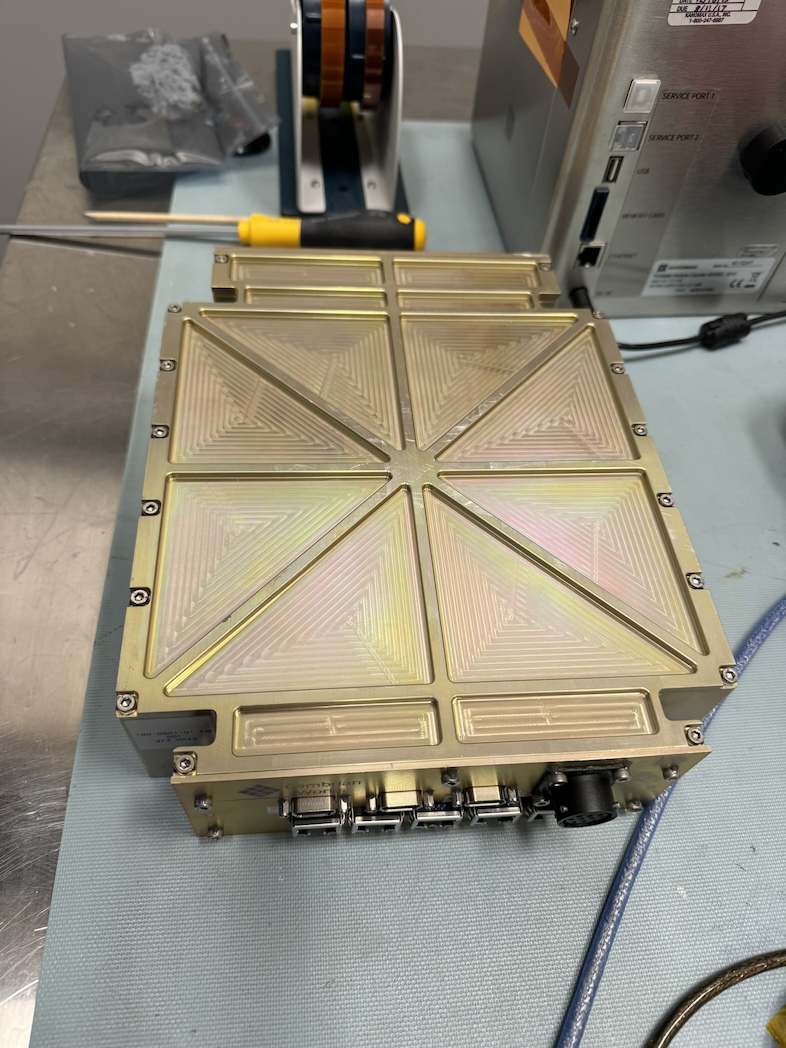

GigRouter GR20

The GigRouter GR20 is a space ready, high-performance router and edge-computing device. Network software can be configured for internal satellite routing and inter-satellite communications. Cambrian Works' PlexusMesh software autonomously manages data routing across hybrid space networks. GR20 is built with an NVIDIA Orin AGX processor capable of AI/ML on-board computing. Multiple network interfaces provide flexibility for communications needs. GR20 has completed NASA GEVs vibration and thermal vacuum testing.

gr20_main
gr20_maingr20_3gr20_5gr20_5gr20_dimensions

Specifications

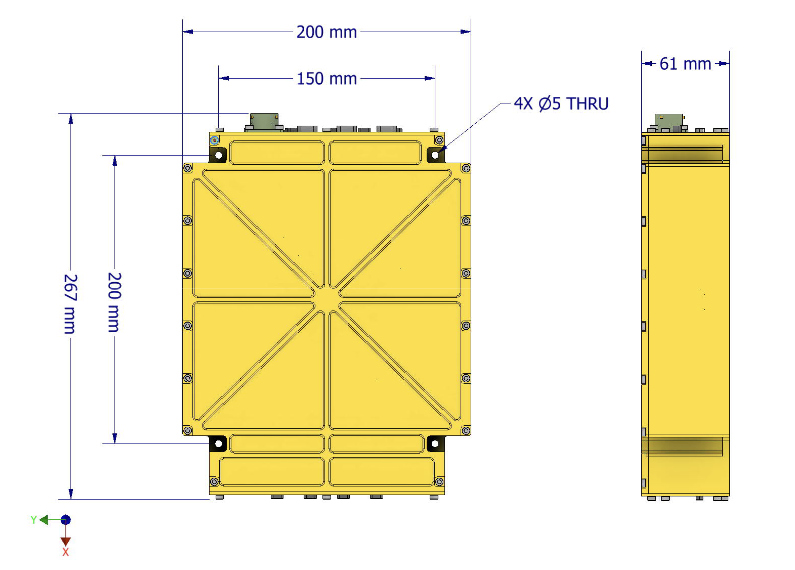

Dimensions267 x 200 x 61 mm
Mass (with enclosure)3.23 kg (Measured)
Power Consumption35 Watts (Nominal)
75 Watts (Max)
Input Voltage Range18V to 36V
Ethernet Interfaces2 x 10-Gbps Ethernet
7 x 1-Gbps Ethernet
1 x RS-422
1 x RS-422 (Debug)
4 x GPIOs
Operating SystemUbuntu
CPU12-core Arm Cortex-A78AE 64-bit
GPU2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
RAM64GB 256-bit LPDDR5
StorageFlash Memory - 64GB eMMC
SSD - 4TB (Standard)
Container OrchestrationKubernetes
